ProctorPassive Wraptite SA

Product Description

ProctorPassive Wraptite SA combines the best properties of a vapour permeable membrane and self-adhesive water and air barrier in one innovative self-adhering product. Wraptite SA utilizes a patented full coverage air permeable adhesive to provide unsurpassed vapour permeability in a commercial quality, self-adhered, water-resistant vapour permeable membrane.

Applications

Wraptite SA’s high vapour permeability allows sheathing to dry quickly and moisture to escape. This ensures good indoor air quality by reducing the likelihood of mould, mildew, condensation, timber distortion and metal corrosion.

Installation

Wraptite SA should be installed in accordance with the supplied installation guide. Wraptite SA fully bonds without mechanical attachments to most substrates for ease of installation, requiring minimal use of sealants or tapes.

Sample Specification

ProctorPassive Wraptite SA vapour permeable membrane, compliant to AS/NZS 4200.1:2017 standards, applied to the roof or wall substrate in accordance with
the product user guide. ProctorPassive Wraptite SA utilises a full coverage highly vapour permeable non-solvent based adhesive, is free of red list chemicals and is a Passive House Institute phA certified component.
• Duty: Light
• Vapour Control – Class 4 Vapour Permeable
• Vapour Permeance no less than 4.0µg/N.s
• Air Barrier : 0.01 m³/m².h @ 50Pa (EN 12114)

Available from DCTech/Proctor Group Australia W: www.proctorgroup.com.au/contact/

Proctor Wraptite-SA vapour permeable membrane

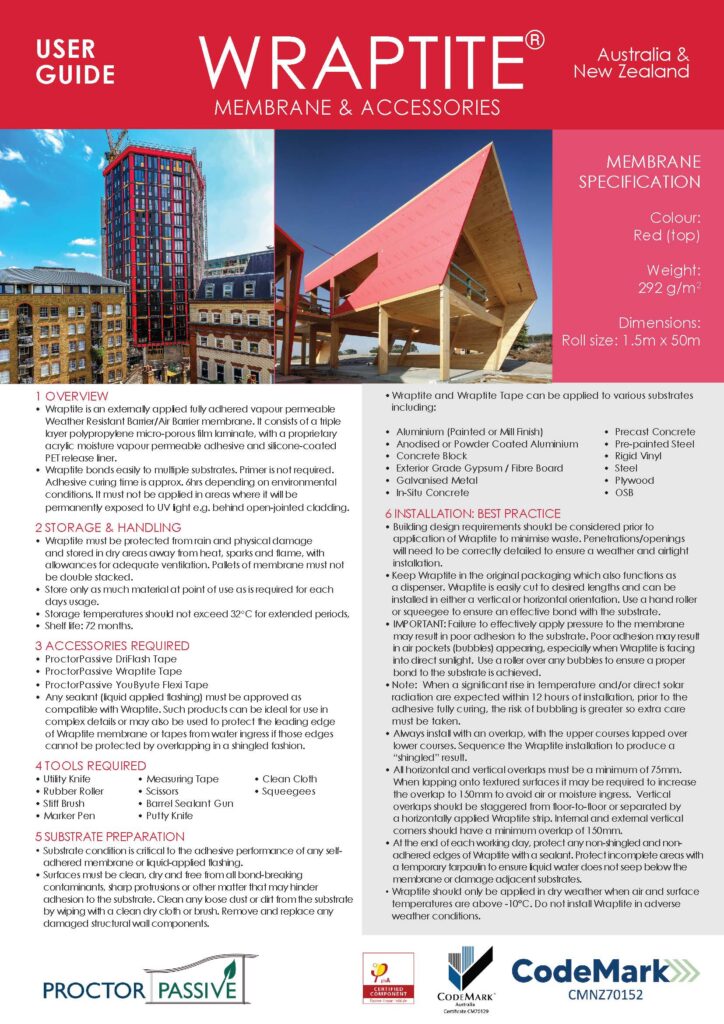

ProctorPassive Wraptite-SA Product Information



ProctorPassive Wraptite-SA Installation Videos



ProctorPassive Wraptite SA - Installation in Salford, UK

Technical data

Criteria

Reference

Results
Nominal ThicknessCalibrated deadweight micrometer0.65mm
Weight (excluding release liner)Electronic weigh scale240 g/m² (±10g/m²)
Installation Temperature –-6˚C to 60˚C
Service Temperature –-40°C to 100°C
Water ResistanceAS/NZS 4201.4

AATCC-127 PASS

EN 1928 – before ageing

EN 1928 – after ageing

Water Barrier: High

55.88cm head of water – 5 hrs

W1

W1

Air PermeanceEN 12114

ASTM 2178

AS/NZS 4200.1, ISO 5636-5

0.01 m³/m².h @ 50Pa

0.000134 L/s/m2 @ 75 Pa

Air Barrier (≥ 0.1 MNs/m3)

Water Vapour Permeance

Water Vapour Resistance

ASTM E96 – Method B4.1μg/N.s

0.243MNs/g

Vapour Barrier ClassificationAS/NZS 4200.1:2017Vapour Permeable: Class 4
Water Vapour Resistance – Sd valueEN ISO 12572 – Method C0.039 m (permeance of 5.13 μg/N.s)
Peel AdhesionASTM D3330> 0.26N/mm
Dimensional StabilityEN 1107-2MD: -0.34% CD: +0.02%
Resistance to Dry DelaminationAS/NZS 4201. 1Pass
Resistance to Wet DelaminationAS/NZS 4201. 2Pass
Flammability IndexAS1530.2*1 (low)
Reaction to FireEN 11925-2BS EN 13501-1Class B, s1, d0⁺
Duty ClassificationAS/NZS 4200.1:2017Light
Tensile StrengthAS 1301.448MD: 7.9 kN/m CD: 4.5 kN/m
Edge Tear ResistanceTAPPI T470MD: 379N CD: 225N
Tear ResistanceEN 1210-1MD: 412N CD: 286N
Flexibility at Low TemperatureEN 1109No cracks at –40˚C
WidthLengthArea per rollWeight per roll

(including packaging)

1500 mm50 m75 m224 kg

* * Tested with release liner removed and adhered to 0.127 mm thick aluminium foil.

+ Tested over 12mm Calcium Silicate Board as per BS EN 13238:2010
