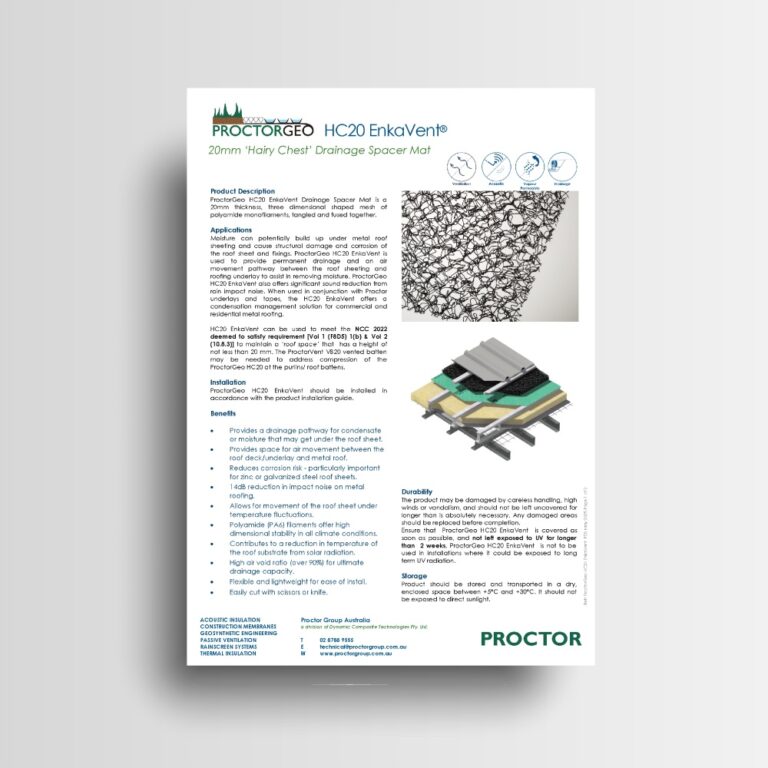

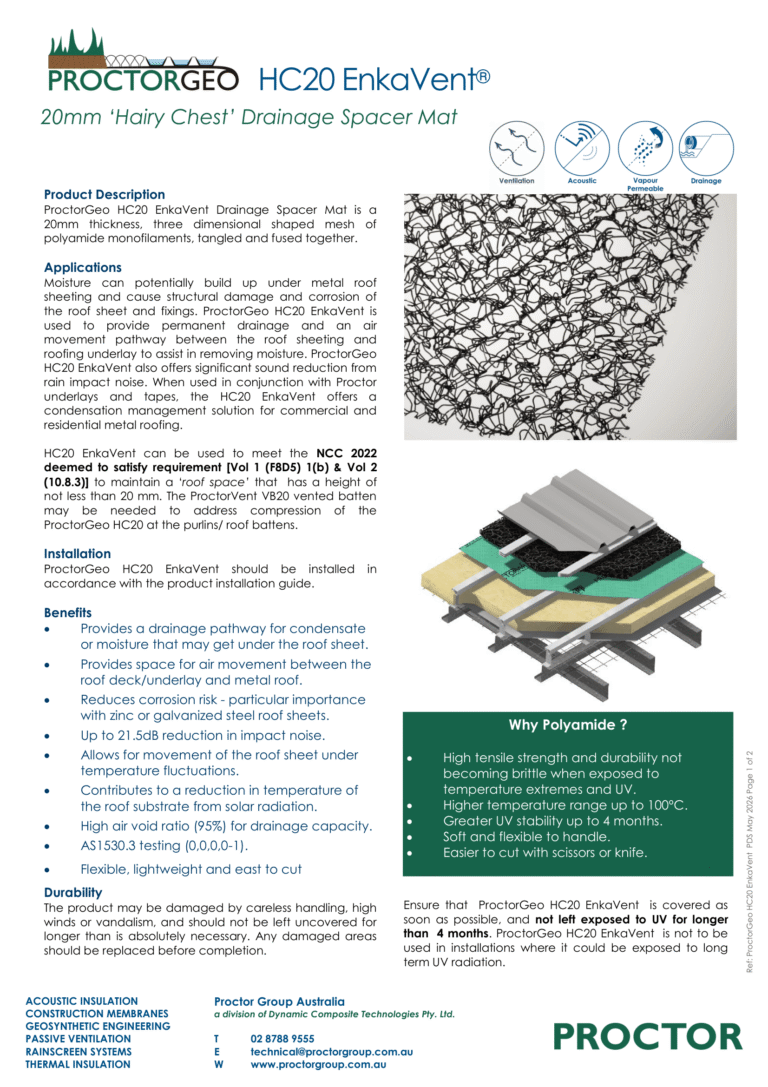

ProctorGeo HC20 EnkaVent® Spacer Mat
Details
ProctorGeo HC20 EnkaVent Drainage Spacer Mat is a 20mm thickness, three dimensional shaped mesh of polyamide monofilaments, tangled and fused together.
Looking for ProctorGeo HC9 spacer mat colloquially known as the “hairy chest”? Recognising the familiarity and positive experiences installers have had with EnkaVent globally, DCTech are now supplying ProctorGeo HC8 EnkaVent as an alternative to ProctorGeo HC9. You can read more about the product update here.
Applications
Moisture can potentially build up under metal roof sheeting and cause structural damage and corrosion of the roof sheet and fixings. ProctorGeo HC20 EnkaVent is used to provide permanent drainage and an air movement pathway between the roof sheeting and roofing underlay to assist in removing moisture. ProctorGeo HC20 EnkaVent also offers significant sound reduction from rain impact noise. When used in conjunction with Proctor underlays and tapes, the HC20 EnkaVent offers a condensation management solution for commercial and residential metal roofing.
HC20 EnkaVent can be used to meet the NCC 2022 deemed to satisfy requirement [Vol 1 (F8D5) 1(b) & Vol 2 (10.8.3)] to maintain a ‘roof space’ that has a height of not less than 20 mm. The ProctorVent VB20 vented batten may be needed to address compression of the ProctorGeo HC20 at the purlins/ roof battens.
Installation
ProctorGeo HC20 EnkaVent should be installed in accordance with the product installation guide.
Benefits
- Provides a drainage pathway for condensate or moisture that may get under the roof sheet.
- Provides space for air movement between the roof deck/underlay and metal roof.
- Reduces corrosion risk – particularly important for zinc or galvanized steel roof sheets.
- 14dB reduction in impact noise on metal roofing.
- Allows for movement of the roof sheet under temperature fluctuations.
- Polyamide (PA6) filaments offer high dimensional stability in all climate conditions.
- Contributes to a reduction in temperature of the roof substrate from solar radiation.
- High air void ratio (over 90%) for ultimate drainage capacity.
- Flexible and lightweight for ease of install.
- Easily cut with scissors or knife.
- AS 1530.3 testing based on ProctorGeo HC8 (0,0,0,0-1).
